Kit Öhlins Road & Track BMW M3/M4 G8x xDrive 2020-, set ()

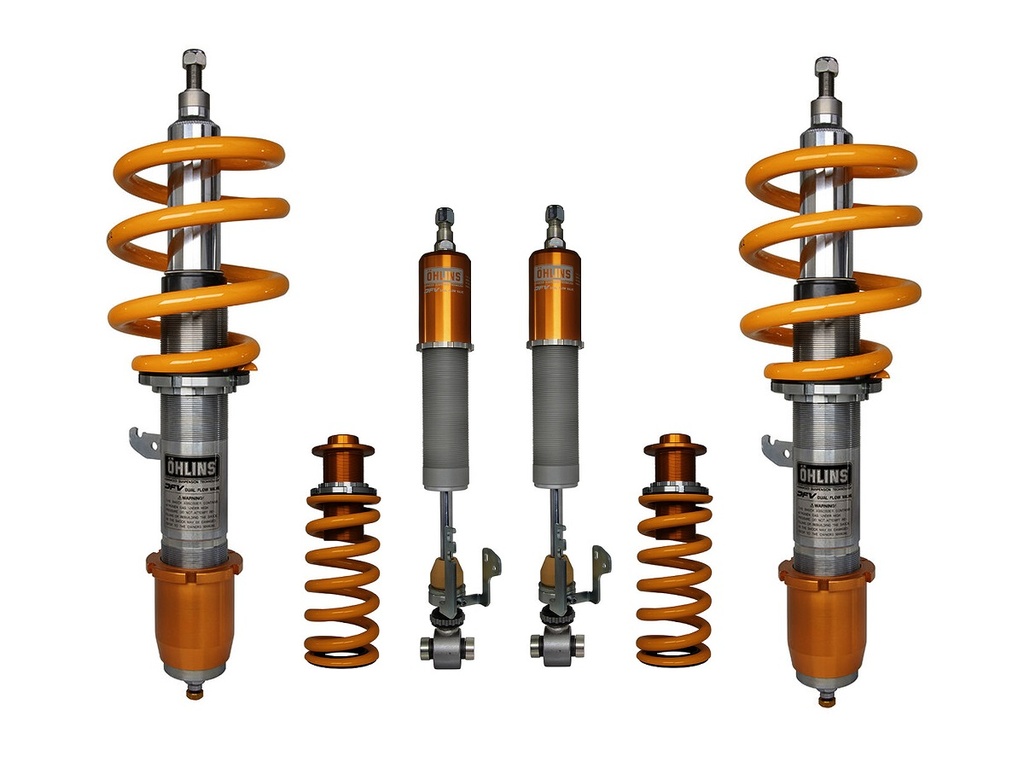

Road & Track Coilover Suspension BMW M3 xDrive (G8x), M4 xDrive (G8x) BMS MW10S1

A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.
General Features:

Patented DFV technology (Dual Flow Valve)
Individual height adjustment
Rebuildable
Corrosion salt spray tested (ISO 9227)
2 year warranty
Approx. 10 kgs less weight compared to standard suspension

Features Front:

McPherson strut, upside down
Compression and rebound damping with one adjuster
Spring preload adjuster
Separate length adjustment
Approx. 25 mm lower than standard with recommended setup
Spring rate 100 N/mm
Use with original top mounts

Features Rear:

Conventional shock absorber
Compression and rebound damping with one adjuster
Spring preload adjuster
Separate length adjustment
Approx. 20 mm lower than standard with recommended setup
Spring rate 190 N/mm
Use with original top mounts

Purchased Parts Package:

Coil over kit incl. springs and mounting parts
C-Spanner (for spring preload adjustment)
Owners manual and mounting instruction
Sticker set

EDC Cancellation Kit:

35020-33

Cancellation kits are not included and need to be ordered separately.
Fits the following vehicles

BMW M3 (G8x) xDrive, 2020 –
Type: G80, G81
TÜV certificate
Manufacturer confirmation (SUI)
GOCA (BE)
BMW M4 (G8x) xDrive, 2020 –
Type: G82, G83
TÜV certificate
Manufacturer confirmation (SUI)
GOCA (BE)
