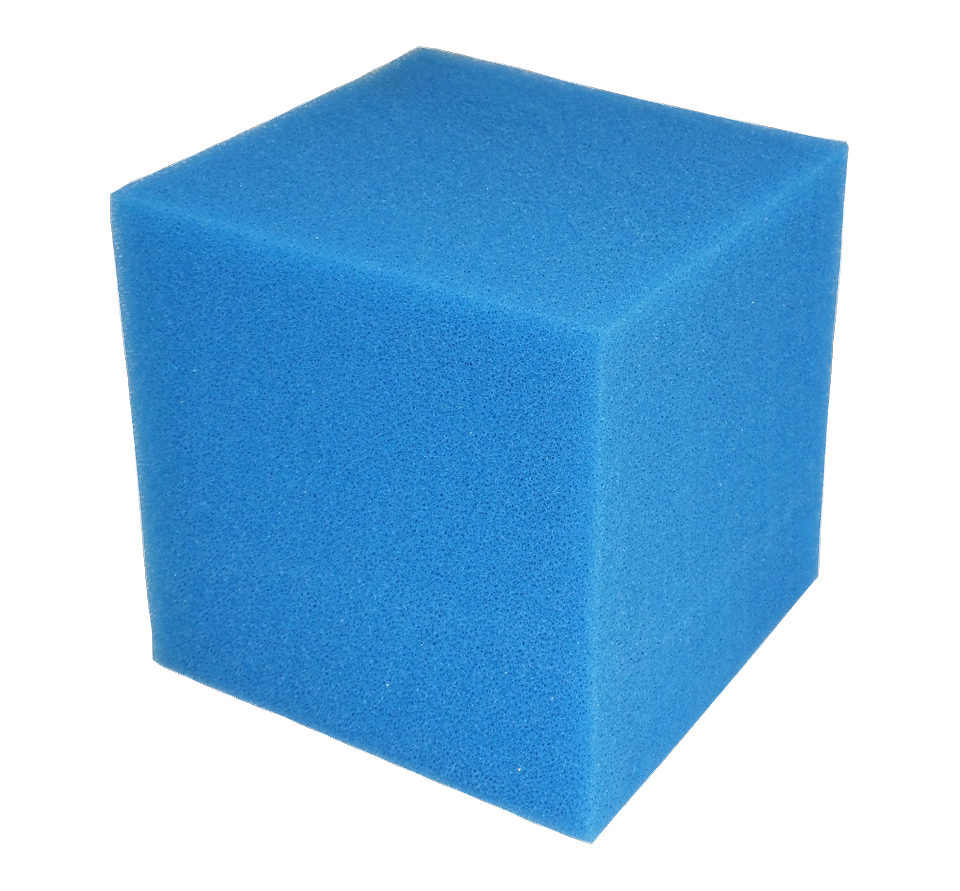

Espuma depósito de combustible ATL : METHANOL WATER BLUE 300MM CUBE SF105

Blue Safety Baffle Foam - Diesel / Water / Methanol
Reticulated (open pore) Blue Safety Foam for use with Diesel / Water / Methanol

Specification:
• For in-tank use with Diesel / Water / Methanol
• Reduces fuel slosh
• Suppresses explosion (fuel cell must be at least 80% foam-filled)
• Sold in 28 Litre cubic foot blocks (300x300x300mm)
• Reduces fuel cell capacity by up to 5% (3% displacement, 2% 'clingage')

Baffle foam can be supplied in custom shapes and quantities. Please contact the ATL Sales Team for further information.

Technical data:
• Primary Uses – Diesel, Methanol, Water
• Colour – Light Blue
• Specification – MIL-B-83054
• Polyol Type – Polyether
• Density Range (lb/ft^3) – 1.20 to 1.45
• Porosity, pore size (ppi) – 24 to 34
• Air Pressure Drop (in. of water) – 0.270 to 37015
• Ultimate Elongation (%) Min – 100
• Tear Resistance (lb/In) Min – 3
• Constant Deflection Compression Set (%) Max – 30
Compression Load Deflection at:
• 25% Deflection (psi) Min – 0.35
• 65% Deflection (psi) – 0.6
• Fuel Displacement/ Max Vol % – 2.5
• Fuel Retention (Max Vol %) – 5
• Flammability (in/min) Max – 15
• Extractable Materials (Wt %) Max 3 – 3
• Entrained Solid Contamination (mg/ft^3) Max – 11
• Typical Electrical Resistivity (OHM-CM) – 1x10^15
