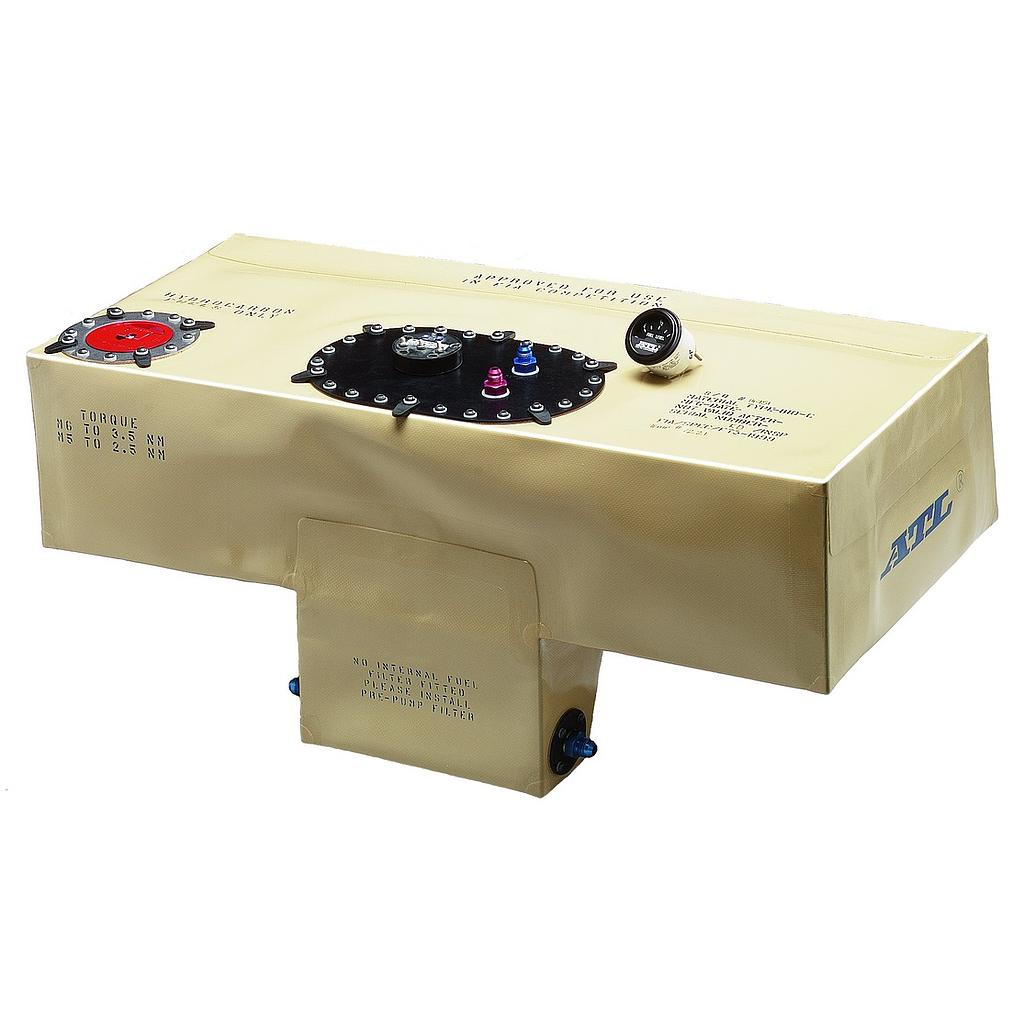

ATL Cell Fuel Assy Mitsubishi Lancer EVO 7 (80L)
Ce produit n'a pas de combinaison existante.
Prix sur demande
CUSTOM FUEL CELL TO SUIT A MITSUBISHI EVO 7 (GROUP N) RALLY CAR
FUEL CELL IS TO BE MANUFACTURED FROM ATL-810-C NYLON REINFORCED MATERIAL IN ACCORDANCE WITH FIA/FT3-1999 SPECIFICATION.
FUEL CELL IS TO INCLUDE:
- INTERNAL FOAM BAFFLING
- (1) 6x10 NUTRING, VITON GASKET & TOP PLATE FITTED WITH (1) ATL FUEL LEVEL SENDER UNIT [LENGTH - 251MM], (1) -6 FUEL RETURN & (1) -6 ROLLOVER VENT [TF350]
- (1) 1206-12 NUTRING, VITON GASKET AND 12 BOLT POLISHED AIRCRAFT FLUSH FILLER CAP
- (2) 500-4 NUTRINGS, VITON GASKETS AND -8 FUEL OUTLET ADAPTERS (INCL. DOWTY WASHERS) MOUNTED ONTO 500-4 PLATES
- ATL DESIGNED SUMP COLLECTOR, WITH ROOF AND GUIDING VANES
PLUMBING:
- (2) -8 x 45° PUSHLOK HOSE FITTINGS ARE TO BE ATTACHED TO THE OUTLET PLATES AND POINTED DOWNWARDS FOR OPTIMUM SCAVENGE
- (1) -6 FUEL RETURN HOSE, ROUTED TO LOWER SUMP
- QC INSPECT
NOTES:
- USE TEMPLATE #1221
- IF IN DOUBT, PLEASE CONSULT DESIGN DEPARTMENT
- CUSTOMER TO ENSURE SURFACES OF COVER ARE CLEAN & DRESSED
PLEASE SUPPLY LOOSE:
- (1) ATL DASHBOARD GAUGE
- (1) ATL FUEL LEVEL SENDER CALIBRATION
